photocell sensor, photocell beam sensor, infrared beam sensor,-Product Center-HWAKAI SENSORS-

1.It has N.C. and N.O. relay output, and can work with different type automatic controller.

2.The photocell's eye is made by special material to avoid the sunshine's affect.

3.The controller will alarm if the eyes having problem.

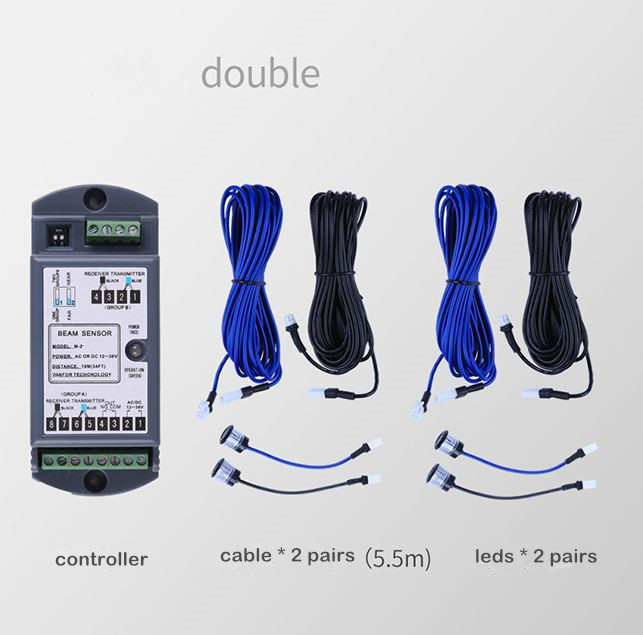

4.It can work with two pairs photocell's eyes.

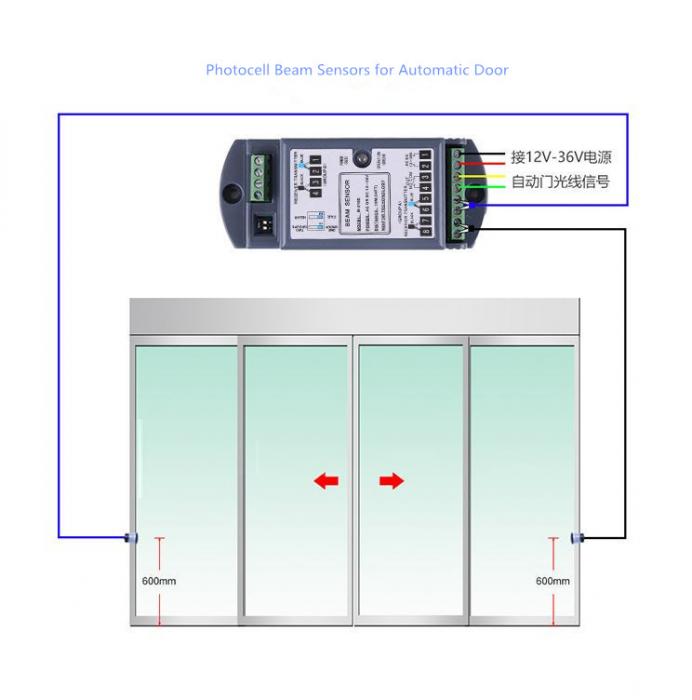

photocell infrared beam sensor for safety automatic door

Power supply	AC/DC 12-36V
Static current	25mA
Action current	40mA
The maximum transmit distance	Max 10m
NO or NC contact	Done by NO./NC contact selection
Working environment temperature	-42℃ to 45℃
Working environment humidity	10 to 90%RH

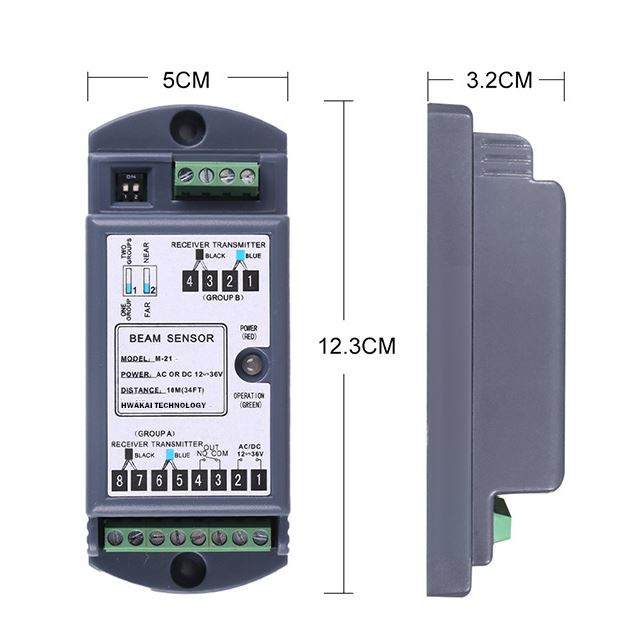

Appearance dimensions( controller)	1235032mm(LWH)
Appearance dimensions(Magic eye head)	1913mm(LD)
