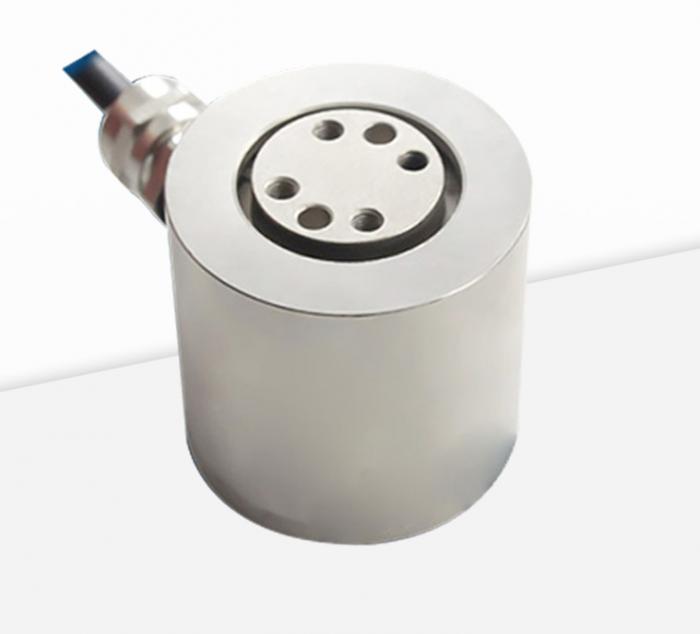

3 axis miniature force sensor-Product Center-HWAKAI SENSORS-

Location:Index--->Product Center >> Multi axis force sensor >> 3 axis miniature force sensor

Product Description

Features and Applications

High precision and strong ability to resist partial load;

Easy to install;

Customizable specifications;

Robot arm precision control, curved surface grinding and polishing, machining center precision carving processing, medical equipment precision testing

Parameters

Specifications	Technique
Capacity	X: 50/100/200/300/500 Y or Z: 50/100/200/300/500
Sensitivity	≈1.0 mV / V
Zero Balance	± 3% F.S.
Non-linearity	0.3% F.S.
Hysteresis Error	0.2% F.S.
Repetition	0.2% F.S.
Interference error	0.5% F.S.
Creep (30 min)	0.2% F.S.
Temp. Effect on sensitivity (TKc)	0.1% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.1% F.S. / 10 ℃
Input Resistance	350 ± 10 Ω
Output Resistance	350 ± 10 Ω
Insulating Resistance	≥5000MΩ / 100VDC
Excitation Voltage	5 ~ 12 V
Max. Excitation Voltage	15 V
Compensation Range	-10 ~ 40 ℃
Service Temperature Range	-20 ~ 75 ℃
Limit load (E L)	150% F.S.
Breaking load (E d)	300% F.S.
Cable size	Φ5 × 4000 mm
IP class	IP66
